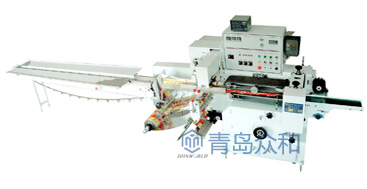

reverse film packaging machine
ZHA- 450X | ZHA -590X |
Features
PLC controlling, speed controlling via inverts, automatic tracking, temperature controller and solid-state relay elements are adopted for accurate assurance at the index of packing pattern, heat-seals temperature and speed etc. Japanese elements are adopted for ensuring the low failure ratio of equipment and convenience in regulating.
Application
Reverse film packaging machine are widely used for multi-material block instant noodles, fine dried noodles, rice flour, poly-sack soup condiment, solid lump, single stick etc.
Specifications
Model No | ZHA-590X | ZHA-450X |
Wrapping machine | >90packs/min | 50-120packs/min |
Product length | 55-300mm | 55-300mm |
Product width | 50-120mm | 50-120mm |
Product height | 10-75mm | 10-75mm |
Max. film width | 590mm | 450mm |
Whole machine power | 4kw | 4kw |
Machine weight | 1200kg | 1200kg |
Machine size | (L)5000mm x (W)1100mm x (H)1600mm | (L)5800mm X(W)950mm X(H)1450mm |
